AW系列外形尺寸图（毫米）

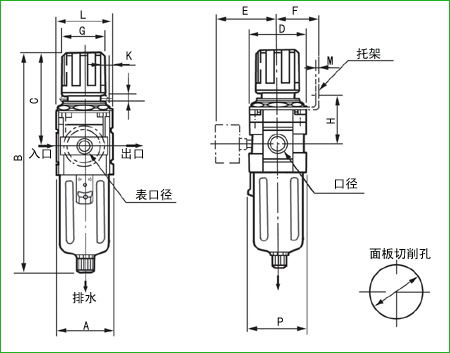

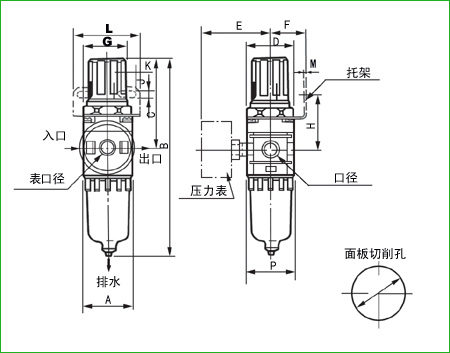

1、外形尺寸图(毫米)
|
AW2000:厚度5 |
 |
AW3000:厚度3.5
AW4000:厚度5 |
 |
|
| 型
号 |
口 径(G) |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
M |
fN |
P |
| AW2000 |
1/8-1/4 |
40 |
164.5 |
78 |
40 |
56.8 |
30 |
34 |
45 |
5.4 |
15.4 |
55 |
2.3 |
33.5 |
40 |
| AW3000 |
1/4-3/8 |
53 |
211 |
92.5 |
53 |
60.8 |
41 |
40 |
46 |
6.5 |
8.0 |
53 |
2.3 |
42.5 |
56 |
| AW4000-04 |
1/2 |
70 |
262.5 |
112 |
70 |
70.5 |
50 |
54 |
54 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
73 |
| AW4000-06 |
3/4 |
75 |
267 |
114 |
70 |
70.5 |
50 |
54 |
54 |
8.5 |
10.5 |
70 |
2.3 |
52.5 |
73 |
|

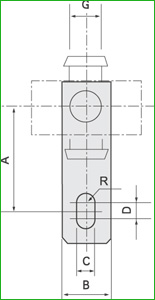

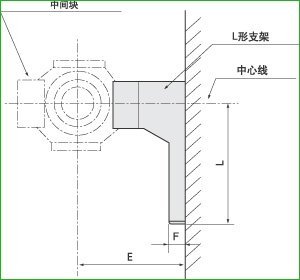

2、附件－L形支架／带L形支架中间块
| L形支架 |
带L形支架中间块 |
A |
B |
C |
D |
E |
F |
G |
R |
L |
适用型号 |
| B210L |
Y20L |
24 |
15 |
55 |
3 |
30 |
5 |
10 |
2.75 |
33 |
AC2000-01/02 |
| B310L |
Y30L |
35 |
16 |
7 |
4 |
41 |
7 |
11 |
3.5 |
45 |
AC2500-02/03AC3000-02/03 |
| B410L |
Y40L |
40 |
22 |
9 |
4 |
50 |
7 |
14 |
4.5 |
50 |
AC4000-04 |
| B610L |
Y60L |
50 |
24 |
12 |
4 |
70 |
10 |
15 |
6 |
62.5 |
AC5000-06/10 |
|
|
|
|
|
|
| | |
|
