396系列油雾器
1、图形符号
2、型号注释
3、技术参数
1.工作压力:1.0MPa
2.工作温度:0～50℃
3.流量:m3/h(L/min)
|
接管W |
G1"/8 |
G1"/4 |
G3"/8 |
G1"/2 |
G3"/4 |
G1 |
|
通径mm |
6 |
6 |
10 |
10 |
20 |
20 |
|
输入压力P1MPa |
10滴/分时的流量m3/h(L/min)当压降△P=0.1MPa时，流量m3/h(L/min) |
|
0.1min |
2.5 |
(40) |
1.5 |
(25) |
8.5 |
(140) |
|
0.1max |
20 |
(330) |
80 |
(1330) |
210 |
(3500) |
|
0.25min |
3.5 |
(60) |
2.5 |
(40) |
9.2 |
(150) |
|
0.25max |
35 |
(580) |
120 |
(2000) |
240 |
(4000) |
|
0.4min |
4 |
(65) |
3 |
(50) |
10 |
(165) |
|
0.4max |
50 |
(830) |
170 |
(2830) |
265 |
(4415) |
|
0.6min |
5 |
(80) |
4 |
(65) |
11 |
(180) |
|
0.6max |
60 |
(1000) |
220 |
(3665) |
295 |
(4920) |
|
1.0min |
7 |
(115) |
6 |
(100) |
13 |
(215) |
|
1.0max |
80 |
(1330) |
290 |
(4830) |
350 |
(5830) |
*油雾器的配管小一号时，流量约减少10%。

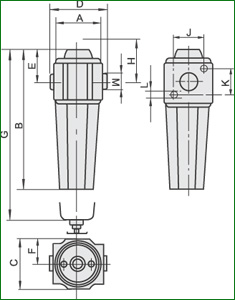

4、外形尺寸图表
|
型号 |
接管W |
A |
B |
C |
D |
E |
F |
G |
H |
J |
K |
L |
重量Kg |
|
396.21 |
G1/8 |
40 |
130 |
40 |
48 |
30 |
20 |
155 |
38 |
20 |
20 |
4.8 |
0.27 |
| 396.22 |
G1/4 |
40 |
130 |
40 |
40 |
30 |
20 |
155 |
38 |
20 |
20 |
4.8 |
0.26 |
| 396.35 |
G3/8 |
60 |
180 |
60 |
68 |
42 |
30 |
220 |
52 |
35 |
35 |
5.7 |
0.90 |
| 396.36 |
G1/2 |
60 |
180 |
60 |
60 |
42 |
30 |
220 |
52 |
35 |
35 |
5.7 |
0.88 |
| 396.48 |
G3/4 |
80 |
240 |
80 |
92 |
55 |
40 |
290 |
67 |
48 |
48 |
7 |
1.03 |
| 396.49 |
G1 |
80 |
240 |
80 |
80 |
55 |
40 |
290 |
67 |
48 |
48 |
7 |
0.98 |
|
