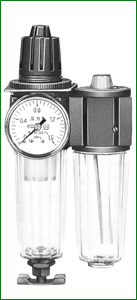

399系列气源处理二联件
1、图形符号
|
 |

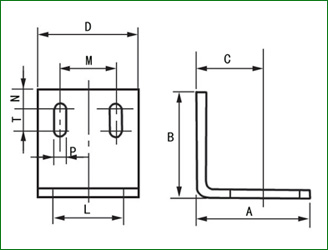

39系列固定支架外形尺寸
| 代号 |
A |
B |
C |
D |
L |
M |
N |
P |
T |
| 规格 |
| G1/8,G1/4 |
49 |
45 |
29 |
43 |
30.2 |
30 |
9 |
6.4 |
18 |
| G3/8,G1/2 |
80 |
70 |
45 |
70 |
50.2 |
29 |
12 |
10.5 |
20 |
| G3/4.G1 |
90 |
90 |
50 |
90 |
67.3 |
50 |
12 |
10.5 |
22 |
|
2、型号注释
|
399 |
- |
G1 |
|
过滤减压、油雾组合二联件 |
|
连接螺纹 |
3、技术参数
1.工作压力:1.0MPa
2.工作温度:0～50℃
3.分水效率不低于:80%
4.流量:(过滤度为50～75μm时)
| 接管W |
G1"/8 |
G1"/4 |
G6"/8 |
G1"/2 |
G3"/4 |
G1 |
| 通径mm |
6 |
6 |
10 |
10 |
20 |
20 |
输入压力P1
MPa |
输出压力P2
MPa |
当压降△P=0.1MPa,过滤度为50～75mm时，流量m3/h(L/min) |
|
1.0 |
0.1 |
13 |
(215) |
37 |
(615) |
70 |
(1165) |
| 1.0 |
0.25 |
21 |
(350) |
55 |
(915) |
100 |
(1665) |
| 1.0 |
0.4 |
25 |
(415) |
65 |
(1080) |
117 |
(1950) |
| 1.0 |
0.5 |
30 |
(500) |
75 |
(1250) |
135 |
(2250) |
*当二联件的配接管径小一号时，流量约减少10%；当过滤元件微孔直径小一号时，流量约减少7%。

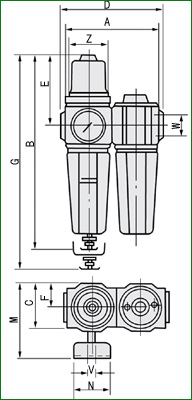

4、外形尺寸图表
| 型号 |
接管W |
A |
B |
C |
D |
E |
F |
Z |
G |
V |
N |
M |
重量Kg |
| 399.213 |
G1/8 |
80 |
177 |
40 |
88 |
62 |
20 |
M30×1.5 |
202 |
G1/4 |
40 |
70 |
0.810 |
| 399.223 |
G1/4 |
80 |
177 |
40 |
80 |
62 |
20 |
M30×1.5 |
202 |
G1/4 |
40 |
70 |
0.800 |
| 399.253 |
G3/8 |
120 |
252 |
60 |
128 |
95 |
30 |
M50×1.5 |
292 |
G1/4 |
50 |
95 |
2.370 |
| 399.263 |
G1/2 |
120 |
252 |
60 |
120 |
95 |
30 |
M50×1.5 |
292 |
G1/4 |
50 |
95 |
2.350 |
| 399.283 |
G3/4 |
160 |
310 |
80 |
172 |
110 |
40 |
M67×1.5 |
360 |
G1/4 |
63 |
120 |
3.090 |
| 399.293 |
G1 |
160 |
310 |
80 |
160 |
110 |
40 |
M67×1.5 |
360 |
G1/4 |
63 |
120 |
3.040 |
|
